| Key Word: | Tattoo Removal Machine, Q Switch Nd Yag Laser, Pico Yag Laser, Pigmentation Removal Laser | Display: | 10.4”Touch Screen |
|---|---|---|---|
| TreatmentTips: | Total5 Tips;532nm;1064nm;1320nm;755nm Focus; 1064nm Fractional | Spot Size: | 1-8mm |
| Laser Rod Size: | Double Rods ф7+8 | Cooling System: | Air+Water+Twin Radiator Cooling |
| Infrared AimingBeam: | Yes | Single Pulse Energy: | 600mJ |
| Application: | For Commercial | After-sales Service Provided: | Online Support, Video Technical Support |
| After-sales Service Provided: | Online Support, Video Technical Support | Warranty: | 2 Years |
| Brand: | KES | Brand: | KES |
| Quantity: | 1 | Quantity: | 1 |
| Lead Time: | 15 | ||
| High Light: | laser tattoo removal equipment,laser tattoo removal machine,cynosure tattoo removal machine |
||

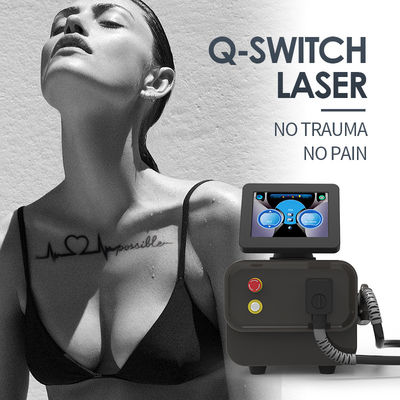

532 Nm 1064 Nm Q Switch Long Pulsed Nd Yag Laser Tattoo Removal Equipment
The key to the success of our machine is its ability to penetrate the layers of the skin and target the pigment clusters directly. The laser's short pulse duration in the nanosecond range combined with its ultra-high energy allows it to penetrate the epidermis into the dermis where the tattoo ink resides. Once the laser light reaches the pigment, an explosion effect occurs.
Technical Specifications Of nd yag laser Machine
| Model NO. | MED-810Tiny |
| Display | 10.4”Touch Screen |
| Laser Power | 1000W |

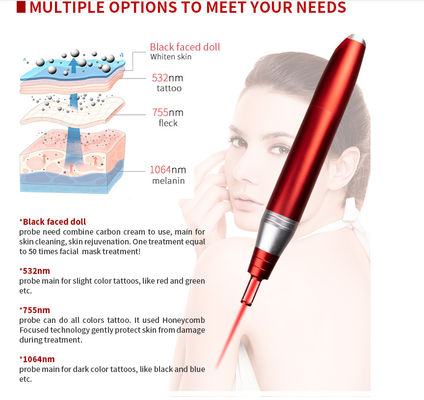

| TreatmentTips | Total5 Tips; |
| 532nm;1064nm;1320nm;755nm Focus; 1064nm Fractional | |
| Pulse Width | 3ns |
| Single Pulse Energy | 600mJ |
| Multi Pulse Energy | 300-2000mJ |
| Frequency | 1-10Hz |
| Spot Size | 1-8mm |
| Infrared AimingBeam | Yes |
| Laser Rod Size | Double Rods ф7+8 |
| Cooling System | Air+Water+Twin Radiator Cooling |
| Continuous Working | 18 Hours Continuously |
| Electrical Requirements | AC110V±10%/60Hz,AC230V±10%/50Hz |
| Net Weight | 25Kg |
| Dimensions(WxLxH) | 560mmx370mmx550mm |
When the laser energy is absorbed by the pigment, it causes the pigment cluster to rapidly expand and break into smaller pieces. These smaller fragments are then eliminated through the body's natural metabolic processes. As a result, the tattoo gradually becomes lighter and eventually disappears completely. The procedure is safe, non-invasive and causes no scarring or damage to the surrounding skin.
Working Principle Of nd yag laser machine :
Laser technology has greatly improved the ability to treat melanocytic lesions and tattoos with therapidly pulsed Q-switch neodymium: yttrium aluminium garnet (Nd: YAG) laser. The laser treatment of pigmented lesions and tattoos are based on principle of selected photothermolysis. The QS laser Systems can successfully lighten or eradicate a variety of benign epidermal and dermal pigmented lesions and tattoos with minimal risk of untoward effects.
Before and After:
OEM/ODM are welcomed!!!
Any questions, please don't hesitate to contact us!!!
