Professional CO2 Fractional Laser Machine Aiming Beam Adjustable Three Model

Professional CO2 Fractional Laser Machine Aiming Beam Adjustable Three Model
Professional CO2 Fractional Laser Machine Aiming Beam Adjustable Three Model

Large Image :  Professional CO2 Fractional Laser Machine Aiming Beam Adjustable Three Model

Product Details:
Place of Origin: Beijing, China
Brand Name: KES
Certification: CE / Medical CE / ISO13485
Model Number: MED-870+
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Aluminum Alloy Case
Delivery Time: 7 working days after payment
Payment Terms: T/T,
Supply Ability: 500 sets per month
Detailed Product Description
Product Type: CO2 Laser Wavelength: 10600nm
Power Suppiy: 40W Spot Pattern: Square; Rectangle; Circle; Triangle; Rhombus; Ellipse; Line
Scan Scope: 20*20mm Spot Size: 0.1mm
Application: For Commercial Application: For Commercial
Application: For Commercial Application: For Commercial
After-sales Service Provided: Online Support, Video Technical Support Warranty: 2 Years
Brand: KES Quantity: 1
Lead Time: 15 Lead Time: 15
Lead Time: 15
Highlight:

fractional co2 laser for acne scars

,

co2 laser skin resurfacing



Professional CO2 Fractional Laser Machine Aiming Beam Adjustable Three Model





Model:MED-870+



Product Description



Our Co2 fractional laser equipment is always a good choice for many users. It is a perfect solution for medical use like scar removal, skin rejuvenation, tissue cutting and many other function.

The Co2 fractional laser use the fractional power to create damage on the skin, then the skin would resurfing. After this process, a totally regeneracy of the​ new skin will show.

We add many new features to this model to make it is the best on the market. The whole new designed water cooling system can let it work for a long time, and the water temperature control system makes sure the whole system works very well.

Not only the cooling system, ​ but also the German fractional system is just amazing. ​ It transfers the powerful laser into tens of dots, the energy of all the dots is 100% equal and exact, only that can provide the best treatment result.

Besides those, the new scanning model also bring optional treatment choice for customizing, it is so wonderful because making customer think you are professional is so easy.

Last but not least, the​ Infrared Aiming let all the operation become much easier than ever. You never need to worry about aiming the target area, just let the​ Infrared Aiming guard you and finish all the things in no time.



CO2 Fractional Laser Advantage



1.Using the graphic to scan the treayment target,optioanl scanning graphics.
2.Wide scanning area,the Max size is 20*20mm,and with the high speed. It can permeate to the deep laer of the skin,so it can remov the scar.
3.This machine has two modes,one is fractional mode,another one is normal mode, you can choose eaily in the GUI after turn on the machine.
4.With 10.4 True color TFT screen, more details can be showed on the screen, and the screen feedback is so sensitive that you cannot feel any delay.
5.Owning the best cooling system,built-in circulaing water cooling,air &water cooling system,the temperature can be protected automatically,so that it can prolong the working time and the service of the machine.
6.Look at the picture you can see the wheels of the machine,because it is unique design,you can stop the machine to move .
7.The machine have the emergency switch so that you can cut off the power immediately in case of the emergency ,ensuring the safe of the operation.



CO2 Fractional Laser Treatment



1. Remove stretch marks
2. Eliminate the scar, Traumatism
3. Improve Pore Bulky
4. Skin rejuvenation
5. Skin tightening and loosen (Deep Wrinkles and Shallow wrinkles)
6. Remove freckles and pouch
7. Actinic keratosis
8. Basal cell carcinoma
9. Burn debridement

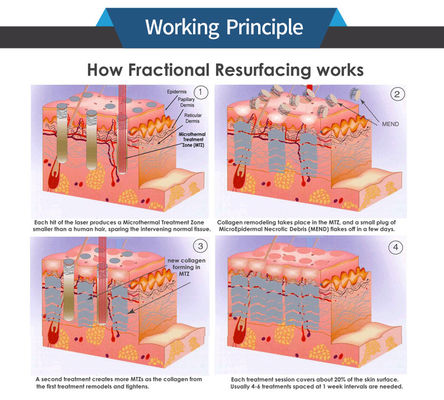

CO2 Fractional Laser Therapy



  • Step 1: Simply put, the laser will create several microscopic holes. The laser is engineered to reach a precise depth to optimize it rejuvenation effect. Generally speaking, the deeper the laser goes, the better the results will be.
  • Step 2: This ablative technique jump starts the cells into activity, thereby promoting collagen formation deep in the skin and new skin growth on the surface. This combined effect is what makes a laser resurfacing treatment so effective and so popular.
  • Step 3: This jump starts the body’s natural regenerative powers thereby promoting collagen formation and synthesis. The new collagen improves texture and tone deep in the skin while the epidermal layer renews.

This regenerative process will continue for six to twelve months after resurfacing. During this time the skin will continue to improve. Fifteen to thirty percent firming can be achieved. Loose eyelids and lax skin is tightened. Resilience and elasticity are restored. Any remaining wrinkles will continue to improve. The procedure lasts 30-60 minutes.



CO2 Fractional Laser Accessory



1.Power Line

2.Funnel
3.Protect Eyewear

4.Footstep
5.Fractional Tip

6.Cutting Tip

7.Light Guiding Arm



Technical Specifications:



Wavelength

10.64um

Power Output

1-40W

Laser Type

UltraPulse; CW; Fractional

Spot Size

0.12mm & 1.25mm (adjustable)

Spot Density

Up to 102400 dot

Scan Size

Up to 20x20mm

Scan Shapes

Square; Rectangle; Circle; Triangle; Rhombus; Ellipse; Line

Beam Patterns

Standard; Random; Scatter

Aiming Beam

5mW red diode laser, 635nm, adjustable intensity, blink on/off

Beam Delivery

Articulated 7-joint arm with up to 360° rotation

Cooling

Self-contained, closed cycle

Stand-by Working

Continuously for 18 hours

Display

10.4" True Color LCD Touch Screen

Electrical Requirements

100-240VAC, 20A max., 50/60Hz

Net Weight

52 kgs

Dimensions (WxDxH)

52*38*117cm



CO2 Fractional Laser Technical Detail:

  • Energy Stable

The co2 system fires many micro beams, these beams shoot the target area and bring the treatment effect. To make sure the energy of each beam is equal and this is the only way to get the best treatment effect. We add a power output control system to the power source, then one big beam can be divided into many small beams.

  • The Spot Area Pattern

We all know that co2 laser is used for skin treatment, and only when the target skin can be covered, we would get the best effect for the treatment. For this propose, the co2 laser can be output in many different shapes. Circle, square, triangle, straight line, hexagon. With the help of these shapes, the co2 laser can deal with all type of skin.

  • Light Guiding Arm

How to guide the light to the handle? This is a problem troubles people for so long time. But now, with our newest light guiding arm in the co2 system, we don’t have to worry about that. The newest light guiding arm is made of alloy, that is why it feels so light and convenient to use and control. Besides, we choose 7-Articulation arm to enhance the light without any waste.

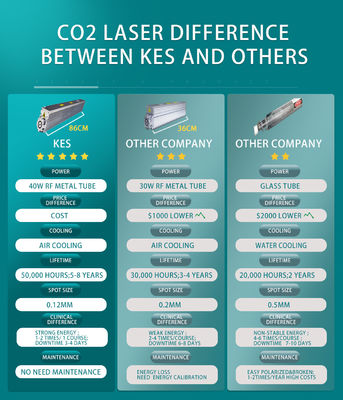

  • Special Cooling System

We also use two layers to combine the water cooling system and the CO2 laser system. When the electricity passes through the light pipe, CO2 gas would be heated, this situation makes the light unstable. So that is why we use another glass water pipe cover the Gas pipe, to let water cool the Gas pipe.

  • Intelligent Operation System

As to CO2 system, there are two models, model A scans dot by dot, this model is used for serious scar treatment, this treatment is very fast. Model B scans with dot irregularly, this model is used for not serious scar treatment. Model B will make clients feel less painful.
