Home ProductsQ-Switched ND YAG Laser

Pigment Removal Q-Switched ND YAG Laser Tattoo Removal ¢7 And ¢8 Yag Bars

Pigment Removal Q-Switched ND YAG Laser Tattoo Removal ¢7 And ¢8 Yag Bars

    • Pigment Removal Q-Switched ND YAG Laser Tattoo Removal ¢7 And ¢8  Yag Bars
    • Pigment Removal Q-Switched ND YAG Laser Tattoo Removal ¢7 And ¢8  Yag Bars
    • Pigment Removal Q-Switched ND YAG Laser Tattoo Removal ¢7 And ¢8  Yag Bars
  • Pigment Removal Q-Switched ND YAG Laser Tattoo Removal ¢7 And ¢8  Yag Bars

    Product Details:

    Place of Origin: China
    Brand Name: KES
    Certification: Medical CE, CE Certificate, ISO13485, SGS
    Model Number: MED-810A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 units
    Price: USD 1000 - 9999 / set
    Packaging Details: Aluminium Packing Box
    Delivery Time: 14 working days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 800 units per month
    Contact Now
    Detailed Product Description
    Product Name: Q - Switched ND YAG Laser Tattoo Removal Pigment Removal ¢7 And ¢8 Yag Bars Cooling: Self-contained, Closed Water Cycle
    Max Energy: 1600mJ Electrical Requirements: 100-240VAC, 20A Max., 50/60Hz
    Dimensions (WxDxH): 45*40*57cm Repetition Rate: 1-6Hz

    Pigment Removal Q-Switched ND YAG Laser Tattoo Removal ¢7 And ¢8  Yag Bars

    Model No:MED-810A





    Working Principle



      The Q-switched ND: YAG laser delivers light of specific wavelengths with high energy which are absorbed by the pigment in the tattoo and result in a shockwave. The shockwave shatters the pigment particles, releasing them from their encapsulation and breaking them into fragments small enough for removal by the body. These tiny particles are then eliminated by the body. Since this specific wavelength can only be absorbed by pigment particles, no injury to skin and normal tissues will occur.



    Treatment



      1. Epidermal pigment: Body Tattoo,Eye line and brow Tattoo

      2. Dermal pigment: Nevus of Ota,birth mark, Coffee Spot, Age Spot, Freckle

      3. Vessels disease: varicosity removal, capillary hemangigoma

      4. Laser facial:oil control, skin rejuvenation, skin pore improvement



    Applications:

    1. Pigment deposit dispelling
    2. Tattoo removal: can remove black, blue, brown, and red tattoo pigments on eyebrow, eye line, lip line, and other parts of body
    3. Eliminates the age pigment, spot, birthmark, and pigment changes



    Advantage:

    1. 8.4” color-touch screen, smart appearance
    2. Dia. Of yag laser: 7mm, US standard laser lamp
    3. Pure America imported “plug and play” joint part, integrating individual water and electricity protection, more safe in operation.
    4. Different system separately controlled and “plug and play” connector, makes the further maintain be much easier.
    5. Double-band free conditioning
    6. Water temperature detection with the automatic alarm sensor on the screen
    7. Flow testing with the automatic alarm sensor on the screen
    8. Multilingual arbitrary switching, anywhere in the world can be easily grasped
    9. Instruction light: net imports of infrared indicator to spot more accurate treatment has greatly enhanced point utilization, and cost saving
    10. Pulse width is 8ns+-2ns, crushed pigment more thoroughly, more minor skin damage.
    11. 1Hz-10Hz higher frequency, more faster treatment.

    12. Top hat Electric adjustable Q (Photoacoustic conduction, higher frequency,

    13. easy to control)

    14. 650nm led beam point, find the right treatment area exactly.

    15. Spot size can be adjusted through focus adjustment lens--0.7 8mm.

    Pigment Removal Q-Switched ND YAG Laser Tattoo Removal ¢7 And ¢8  Yag Bars

    Technical Specifications:



    Wavelength 1064nm & 532nm
    Energy 1-1600mJ
    Laser Type Q-switched KTP Nd:YAG
    Spot Size 2-8mm
    Repetition Rate 1-6Hz
    Pulse Width <10ns
    YAG Bar Size 7 + 8
    Power 500W
    Stand-by Working Continuously for 18 hours
    Cooling Self-contained, closed water cycle
    Display 8.4” True Color LCD Touch Screen
    Electrical Requirements 100-240VAC, 20A max., 50/60Hz
    Net Weight 25kgs
    Dimensions (WxDxH)

    45*40*57cm

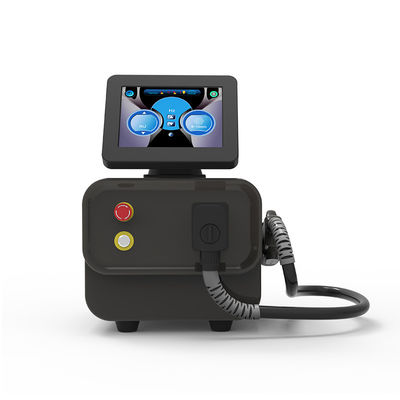

    Machine details show:



    Pigment Removal Q-Switched ND YAG Laser Tattoo Removal ¢7 And ¢8  Yag BarsPigment Removal Q-Switched ND YAG Laser Tattoo Removal ¢7 And ¢8  Yag Bars
