Product Details:
Payment & Shipping Terms:
|
Scan Shapes: | Square; Rectangle; Circle; Triangle; Rhombus; Ellipse; Line | Handle: | Articulated 7-joint Arm |
---|---|---|---|
Metal Tube: | USA Coherent | Dimensions (WxDxH): | 52*38*117cm |
Scan Size: | Up To 20x20mm | Net Weight: | 52 Kgs |
Application: | For Commercial | Application: | For Commercial |
Application: | For Commercial | Application: | For Commercial |
After-sales Service Provided: | Online Support, Video Technical Support | Warranty: | 2 Years |
Warranty: | 2 Years | Warranty: | 2 Years |
Brand: | KES | Quantity: | 1 |
Lead Time: | 15 | Lead Time: | 15 |
Lead Time: | 15 | ||
Highlight: | co2 fractional laser machine skin resurfacing,medical fractional laser co2,rejuvenation fractional co2 laser |

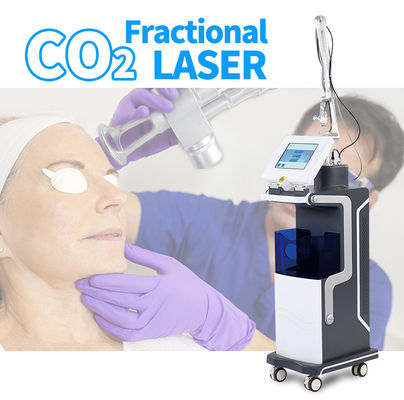

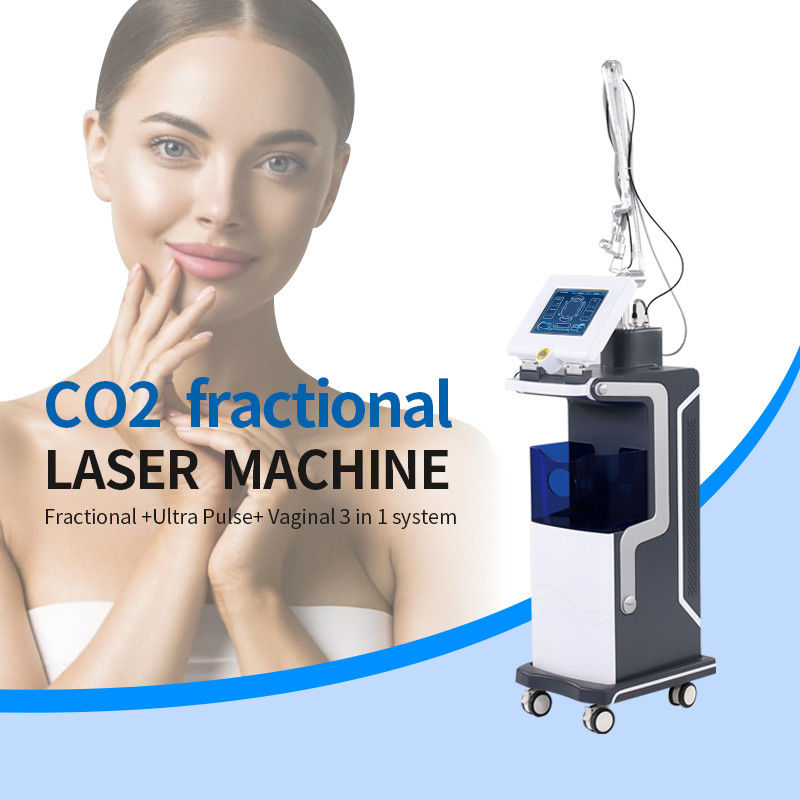

USA Coherent Metal Tube CO2 Fractional Laser Scare Removal Skin Resurfacing Device
Model No.:MED-870+
Working Principle:
Fractional CO2 laser therapy works mainly on the principle of fractional heat damage. The fractional CO2 laser creates microscopic holes in the upper layer of skin and leaves the deeper part of the skin intact.
The purpose of the treatment is to create controlled heat damage at the basal layer of skin leading to the reduction of wrinkles, pigmentation and acne scarring. The fractional CO2 laser also tightens and refines the skin as well as improving the long term collagen and elastin reproduction.
This machine adopts CO2 laser technology and precise control of the scan technology, using the CO2 laser’s heat penetrating action, in the guidance of the scan precise scanning, 0.12mm diameter thin minimally invasive aperture was formed by lattice-shaped on the skin. Skin in the effect of the laser energy and heat, wrinkle or scar tissue was uniform gasified instantaneous and formed minimally invasive hole as the center of the micro-heating zone, so as to stimulate the skin synthesize a large number of new collagen tissue. and thus start the tissue repair, collagen rearrangement of a series of body's natural healing mechanisms. Fresh collagen random regenerate, make the treated area of skin becomes smooth, firm, elastic, pores shrink, wrinkle reduction , bags under the eyes disappear, the pigmentation disappear, superficial scar calm, skin texture and skin color gradually improved significantly.
Applications:
1) Skin Resurfacing (Superficial Peeling)
2) Scar Removal: Acne scars, burnt scars and surgery scars, etc
3) Collagen Stimulation
4) Ablation and coagulation for the treatment of skin furrows and other textural irregularities.
5) Dermatological Surgery (including Striae Gravidarum)
Before&After:
Advantages:
1. USA Coherent Metal Tube(RF-excited)
2. 2 in 1 system: Fractional + Surgical (ultrapulsed laser)
3. Aiming Beam adjustable, insure precise treatment
Technical Specifications:
Wavelength | 10.64um |
Power Output | 1-40W |
Laser Type | UltraPulse; CW; Fractional |
Spot Size | 0.12mm & 1.25mm (adjustable) |
Spot Density | Up to 102400 dot |
Scan Size | Up to 20x20mm |
Scan Shapes | Square; Rectangle; Circle; Triangle; Rhombus; Ellipse; Line |
Beam Patterns | Standard; Random; Scatter |
Aiming Beam | 5mW red diode laser, 635nm, adjustable intensity, blink on/off |
Beam Delivery | Articulated 7-joint arm with up to 360° rotation |
Cooling | Self-contained, closed cycle |
Stand-by Working | Continuously for 18 hours |
Display | 10.4" True Color LCD Touch Screen |
Electrical Requirements | 100-240VAC, 20A max., 50/60Hz |
Net Weight | 52 kgs |
Dimensions (WxDxH) | 52*38*117cm |
The picture of interface:
