    Product Details:

    Place of Origin: Beijing,China
    Brand Name: KES
    Certification: Medical CE, CE Certificate, ISO13485, SGS

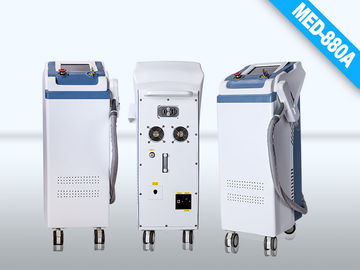

    Model Number: MED-880A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 units
    Price: USD$1~10000
    Packaging Details: Aluminium Packing Box
    Delivery Time: 14 working days
    Payment Terms: T/T, Western Union
    Supply Ability: 800 units per month
    Contact Now
    Detailed Product Description
    Dimensions (WxDxH): 43*42*105cm Net Weight: 43kgs
    Spot Size: 2-8mm Laser Type: Q-switched KTP Nd:YAG
    Brand: KES Key Word: Tattoo Remover

      white and gray laser Spot Size 2 , 8mm Q Switched ND YAG Laser  Energy  Tattoo Remover



    Q-Switched Nd:YAG laser uses an intense beam of light to significantly lighten or completely remove your tattoo. When the ink particles of your tattoo absorb the light from the laser, they are broken up into tiny fragments

    These fragments are then absorbed through your body's natural cleansing
    mechanism. This cleansing process generally takes a few weeks. Larger ink particles may require multiple treatments.





    Unique Advantages:

    1) Effective:7 YAG bar,500w power supply, 6HZ frequency,maximum energy 1000mj!

    2) Excellent cooling

    3) Optimized inner structure, more stable and longer lifetime

    4)1. Truly portable, continent
    5) New-developed hand piece
    6) Water-flow monitor
    7). Water flow and temp monitor
    8) Plug and play function





    Application:



    1) Non-ablative Laser Rejuvenation (NALR-1320nm) using carbon peel for skin rejuvenation



    2) 532nm: for treatment of epidermal pigmentation such as freckles, solar lentiges, epidermal melasma, etc. (mainly for red and brown pigmention)



    3) 1064nm: for treatment of tattoo removal, dermal pigmentation and treating certain pigmentary conditions such as Nevus of Ota and Hori’s Nevus. (mainly for black and blue pigmention)



    Working Principle:

    Laser technology has greatly improved the ability to treat melanocytic lesions and tattoos with the rapidly pulsed Q-switch neodymium: yttrium aluminium garnet (Nd: YAG) laser. The laser treatment of pigmented lesions and tattoos are based on principle of selected photothermolysis. The QS laser Systems can successfully lighten or eradicate a variety of benign epidermal and dermal pigmented lesions and tattoos with minimal risk of untoward effects.



    (Nd: YAG) laser. The laser treatment of pigmented lesions and tattoos are based on principle of selected photothermolysis. Selective thermolysis can be applied towards the removal of tattoos. The energy delivered by a number of different lasers is targeted towards the carbon particles or dyes that are found in skin tattoos, allowing selective destruction of the foreign pigment while minimizing damage to the surrounding skin.



    white and gray laser Spot Size 2 , 8mm Q Switched ND YAG Laser  Energy  Tattoo Remover

    Technical Specifications:



    Wavelength 1064nm & 532nm
    Energy 1-1000mJ
    Laser Type Q-switched KTP Nd:YAG
    Spot Size 2-8mm
    Repetition Rate 1-6Hz
    Pulse Width <8ns
    YAG Bar Size 7
    Power 500W
    Aiming Beam 5mW red diode laser, 635 nm
    Stand-by Working Continuously for 18 hours
    Cooling Self-contained, closed water cycle
    Display 8.4" True Color LCD Touch Screen
    Electrical Requirements 100-240VAC, 20A max., 50/60Hz
    Net Weight 43 kgs
    Dimensions (WxDxH) 43*42*105cm
