Technology: | IPL ,SHR, E-light, DPL, Q Switch ND Yag Laser | Warranty: | 12 Months |
---|---|---|---|
Screen: | 10.4 Inch Color Touch Screen | Handpiece: | DPL+Tattoo Removal Handpiece |
Capacitors: | 3 Japan Customized Capacitors | Xenon Lamp: | Germny Customized Xenon Lamp |
Product Name: | Intense Pulsed Light SHR IPL Machine DPL Skin Rejuvenation Tattoo Removal Multifunctional For Salon | Key Words: | IPL SHR Machine, Ipl Hair Removal Machine, Dpl Skin Rejuvenation Machine, Pigmentation Removal Machine, Tattoo Removal Machine, |
Application: | For Commercial | After-sales Service Provided: | Online Support, Video Technical Support |
After-sales Service Provided: | Online Support, Video Technical Support | Warranty: | 2 Years |
Warranty: | 2 Years | Warranty: | 2 Years |
Brand: | KES | Brand: | KES |
Quantity: | 1 | Lead Time: | 15 |
High Light: | ultrasonic cavitation slimming machine,permanent hair removal |

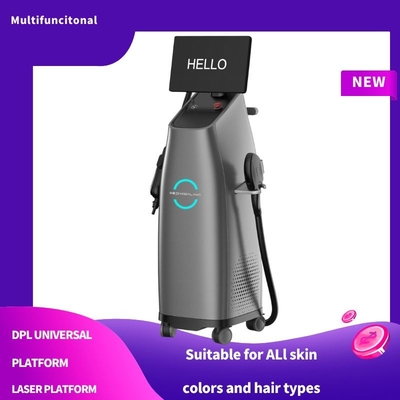

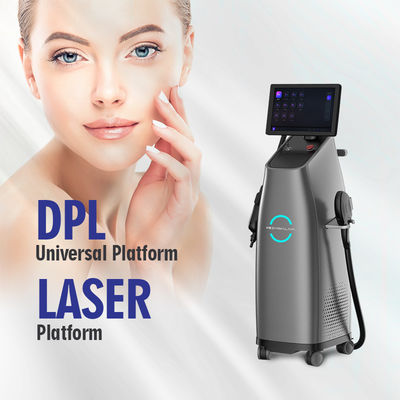

Intense Pulsed Light SHR IPL Machine DPL Skin Rejuvenation Tattoo Removal Multifunctional For Salon
Working Principle:
IPL (Intense pulsed Light) is a kind of color light with high energy, broad spectrum, various wavelength, which could effectively penetrate epidermis to dermis.This light could reach different layers of skin, and absorbed by targeted tissue, so IPL could successfully kill the hair follicles then remove unwanted hair permnently. It could also close the abnormal blood vessels, effectively treat the telangiectasis. And could decompose abnormal pigment cells, then remove all kinds of spots.
DPL Skin Rejuvenation Tattoo Removal Multifunctional Machine Techniqual Specification
Operating System | 15.6Android Screen |
Model No. | MED-230LUX |
IPL Peak Power | 3500W |
Handpiece Number | Total 2;(1 DPL Handpiece,1 Laser Handpiece) |
Wavelength | DPL550~650nm;Laser 1064+532+1320nm standard |
DPL500~600nm/308~380nm/SHR650~950nmoptional | |
IPL12*33(430/530/640nm)Optional | |
EnergyDensity(Fluence) | 1-26J/cm²(DPL),1-1500mJ(Laser) |
Spot Size | 15x50mm(DPL),2~8mm(Laser) |
Pulse Duration | 1-15ms |
Pulse | Single |
Pulse Repetition Rate | 1-10Hz |
Timer | 1-30ms |
Cooling | Air+Water+Sapphire contactcooling(-4°C~+4°℃) |
Stand-by Working | Continuously for 12 hours |
Net Weight | 50KG |
Dimensions(WxLxH) | 390x435x1310mm |
Hair removal principle diagram:
Intense Pulsed Light SHR IPL Machine Advantages:
DPL (DyePulsed Light) 550~650nm,more safe&effective for Pigmentation Lesions,Rejuvenation(OPTIONAL 500~600 Vacular Lesions, 308~380nm Vitiligo Treatment)
Smart Clinics System,provide Remote Devices Management, Errors Alarm,Clinical Training,Customers Info Storage, Appointment Reminder...
10Shoots/sec In-motion DPL Technology,75% treatment time redeuced, clients bookings increase 100% everyday.
1,000,000 Shots Germany Heraeus Xenon Lamp,Stable Energy,2 times Lifespan than others 75% Pain Reduced 75% Redness Reduced compared with IPL.
1) SHR Permanent hair removal
2) Fast treatment. Frequency up to 10Hz!
3) Big spot size: 15*50mm
4) Painless: new AFT technology (Advanced Fluorescence Technology) uses low and equal energy. The special filter cut s 950-1200nm wavelength, which is useless in treatment and absorbs water to make patient feel painless
5) Hairfree, even on work on blonde, red or fine hair
6) Skinfree, suitable for all skin types, even tanners
7) Accurate Software control and parameters adjustable
Treatment is more pleasant than with the conventional systems and your skin is better protected.
KES IPL machine advantages:
1. Important spare parts of handpiece are imported from Germany, U.S to assure steady quality, long-time
working, safe and convenient peformance. Unique design of coil and cloth to protect the tube.
2. Portable and floor standing design for more choices.
3. Perfect cooling system to assure the temperature of the handpiece can cool down to 4°C in one minute and
the highest no more than 20°C. The whole treatment will be comfortable and safe, efficient.
4.Japan imported capacity to assure the safe performance, two types of filters to clean out the impurities of the
circulation water for constant high water speed and assure low-temperature cooling.
Difference Of IPL SHR & Traditional IPL or laser:
Traditional laser or IPL technologies employ short impulses of approximately 2-300 milliseconds, applying a vast amount of energy (12-120 J/cm2). Energy is transported to the hair root through melanin, where warmth of 65-72° Celsius is produced. Energy reaches the root of the hair follicle solely through melanin. Skin and red blood cells have a similar absorption coefficient as melanin and therefore also absorb the high levels of energy produced by the laser and IPL methods.
SHR technology, on the other hand, utilizes the melanin path only partially (50%)., and combining In-Motion technology, gently warms the skin helping penetrate down to the follicles which produce hair growth.
Research has shown that a slower, but longer heating process is considerably more effective for permanent hair removal than high and short levels of energy. Therefore, when using SHR, the device is passed over the tissue multiple times (in motion) using low energy but a high rate of repetition (up to 10Hz, i.e. 10 times per second) instead of using the traditional method with single, high-energy impulses. Thus, the hair melanin, as well as the tissue of the stem cells, is heated with low energy at a slow pace and over a longer period of time to a comfortable temperature of 45° Celsius.
Before and After
OEM/ODM are welcomed!!!
Any questions, please don't hesitate to contact us!!!
