Medical CE Approval Fractional Co2 Laser Machine 635nm for Burnt / Surgery Scars

Medical CE Approval Fractional Co2 Laser Machine 635nm for Burnt / Surgery Scars

    • Medical CE Approval Fractional Co2 Laser Machine 635nm for Burnt / Surgery Scars
    • Medical CE Approval Fractional Co2 Laser Machine 635nm for Burnt / Surgery Scars
    • Medical CE Approval Fractional Co2 Laser Machine 635nm for Burnt / Surgery Scars
    • Medical CE Approval Fractional Co2 Laser Machine 635nm for Burnt / Surgery Scars
  • Medical CE Approval Fractional Co2 Laser Machine 635nm for Burnt / Surgery Scars

    Product Details:

    Place of Origin: China
    Brand Name: KES
    Certification: Medical CE, CE Certificate, ISO13485, SGS
    Model Number: MED-870+

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 units
    Price: negotiable
    Packaging Details: Aluminium Packing Box
    Delivery Time: 14 working days
    Payment Terms: T/T, Western Union
    Supply Ability: 800 units per month
    Contact Now
    Detailed Product Description
    LCD Screen: 10.4 Inch LCD Real Color Touch Screen Light Conducting System: 7 Jointed Arms To Conduct Light
    Wavelength: 10.6µm Metal Tube: USA Coherent
    Brand: KES Type: Vertical Machine

    Medical CE Approval Fractional Co2 Laser Machine 635nm for Burnt / Surgery Scars

    Model No.:MED-870+

    Medical CE Approval Fractional Co2 Laser Machine 635nm for Burnt / Surgery Scars





    Feature:

    1)  US imported RF Laser Device. 50W power. The highest level in this area.

    2) Light guide arm: 7 joint articulated arm with high quality, easily and precisely locating.

    3) Power supply: high quality, high power, super pulse can reach 500HZ/s.

    4) Spot diameter is very short, so the treatment spot is small, which means the wound area is slight and recovers much faster.

    5) The depth and size of every spot is the same. No missing spot in the treatment area. No distortion in shape.

    6) Shooting speed is more than 10m/s, so the thermal damage is slight, bringing much less pain.

    7) Density, depth, and shape, all can be adjusted. It's very convenient.

    8) Multiple scan models: free scan, sequence scan, maximum distance scan. Free scan and maximum distance scan technology will diffuse the heat of adjacent organizations, not leading to a heat buildup, which greatly reduces thermal damage and other complications.

    9) 7 different scan shape, adapt to different customer’s request.

    10) Distance: 0.1mm-2.6mm. The spots are dense, which means result will be much better.



    Working Principle:

    The co2 laser uses a unique head piece which tracks the CO2 10.6 um wavelength light as it passes light through its optical lens to penetrate the skin. We can control the depth of the penetration from only a few micrometers in depth (only as deep as a few sheets of paper) to much deeper with tiny thermal channels. This will also determine the length of healing, the number of treatments and the cost. Each thermal channel creates a small micro-injury but does not significantly disturb or disrupt the surrounding tissue.



    These microscopic injuries caused by the laser (around 15-20% of the treated area) are the beginning of the healing process. By creating thousands of these perforations underneath the skin, your epidermis layer starts to heal from the edge of these microscopic perforations very quickly. By healing so fast it remodels, tightens and stimulates the collagen, your skin tightens, which in turn smooths out lines, and significantly improves your skins tone and complexion.



    Before and After:

    Medical CE Approval Fractional Co2 Laser Machine 635nm for Burnt / Surgery Scars

    Treatment:

    1) Skin Rejuvenation

    2) Acne scars

    3) Actenic keratoses

    4) Basal cell carcinoma

    5) Burn debridement

    6) Laser skin resurfacing

    7) Eliminating the scar by traumatism or operation

    8) Improving texture tone and pore size

    9) Erasing unwanted brown spots

    10) Smoothening wrinkles around the eyes and mouth

    11) Rejuvenating neck, chest and hands etc

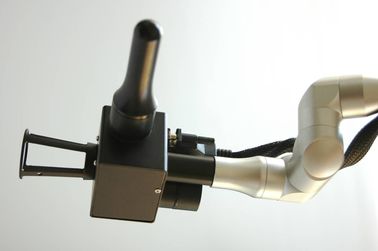

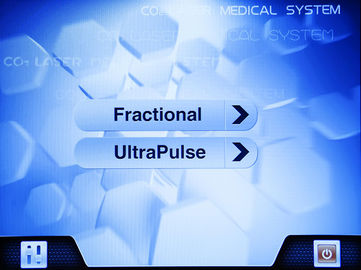

    The picture of interface and handpiece:

    Medical CE Approval Fractional Co2 Laser Machine 635nm for Burnt / Surgery Scars



    Medical CE Approval Fractional Co2 Laser Machine 635nm for Burnt / Surgery Scars

    Technical Specifications:

    Wavelength 10.64um
    Power Output 1-40W
    Laser Type UltraPulse; CW; Fractional
    Spot Size 0.12mm & 1.25mm (adjustable)
    Spot Density Up to 102400 dot
    Scan Size Up to 20x20mm
    Scan Shapes Square; Rectangle; Circle; Triangle; Rhombus; Ellipse; Line
    Beam Patterns Standard; Random; Scatter
    Aiming Beam 5mW red diode laser, 635nm, adjustable intensity, blink on/off
    Beam Delivery Articulated 7-joint arm with up to 360° rotation
    Cooling Self-contained, closed cycle
    Stand-by Working Continuously for 18 hours
    Display 10.4" True Color LCD Touch Screen
    Electrical Requirements 100-240VAC, 20A max., 50/60Hz
    Net Weight 52 kgs
    Dimensions (WxDxH) 52*38*117cm



    Medical CE Approval Fractional Co2 Laser Machine 635nm for Burnt / Surgery Scars
