Product Details:
Payment & Shipping Terms:
|
Net Weight: | 52 Kgs | Brand: | KES |
---|---|---|---|
Metal Tube: | USA Coherent | Certificate: | Medical CE, CE Certificate, ISO13485, SGS, FDA |
Handle: | Articulated 7-joint Arm | Scan Shapes: | Square; Rectangle; Circle; Triangle; Rhombus; Ellipse; Line |
Application: | For Commercial | After-sales Service Provided: | Online Support, Video Technical Support |
After-sales Service Provided: | Online Support, Video Technical Support | Warranty: | 2 Years |
Quantity: | 1 | Lead Time: | 15 |
High Light: | fractional laser treatment,laser fractional co2,fractional co2 laser skin resurfacing machine |

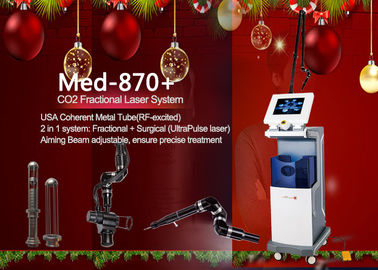

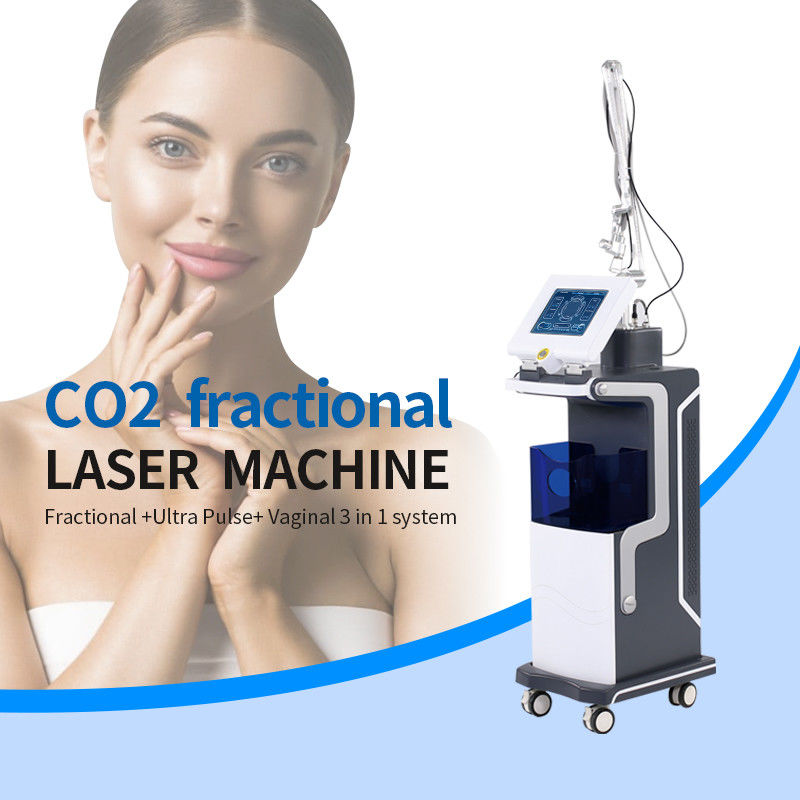

635nm Fractional Co2 Fractional Laser Machine , Scar Removal Machine
Model No.:MED-870+
Advantages:
1. Scan mirror: made in Germany. The scan accuracy and speed is both very high.
2. Light guide arm: 7 joint articulated arm with high quality, easily and precisely locating.
3. Power supply: high quality, high power, super pulse can reach 500HZ/s.
4. Spot diameter is very short, so the treatment spot is small, which means the wound area is sligth and recovers much faster.
5. The depth and size of every spot is the same. No missing spot in the treatment area. No distor tion in shape.
6. Shooting speed is more than 10m/s, so the thermal damage is slight, bringing much less pain.
7. Density, depth, and shape, all can be adjusted. It's very convenient.
8. Multiple scan models: free scan, sequence scan, maximum distance scan. Free scan and maximum distance scan technology will diffuse the heat of adjacent organizations, not leadint to a heat buildup, which greatly reduces thermal damage and other complications.
9. 7 different scan shape, adapt to different customer’s request.
10. Distance: 0.1mm-2.6mm. The spots are dense, whichi means result will be much better.
11. Power: 30W. It's very high in this industry
How does CO2 fractional laser work?
The C02 Fractional Laser Resurfacing removes layers of skin tissue in a fractionated method (columns of skin are removed, leaving the skin surrounding each column intact to aid in healing) to help reduce “age-spots” (also called sun freckles, liver spots, and lentigines), fine lines, wrinkles, scarring, uneven coloration, skin laxity, textural irregularities, dull tone, and a thinned collagen layer of the face, neck, and chest.
This machine adopts CO2 laser technology and precise control of the scan technology, using the CO2 laser’s heat penetrating action, in the guidance of the scan precise scanning, 0.12mm diameter thin minimally invasive aperture was formed by lattice-shaped on the skin. Skin in the effect of the laser energy and heat, wrinkle or scar tissue was uniform gasified instantaneous and formed minimally invasive hole as the center of the micro-heating zone, so as to stimulate the skin synthesize a large number of new collagen tissue. and thus start the tissue repair, collagen rearrangement of a series of body's natural healing mechanisms. Fresh collagen random regenerate, make the treated area of skin becomes smooth, firm, elastic, pores shrink, wrinkle reduction , bags under the eyes disappear, the pigmentation disappear, superficial scar calm, skin texture and skin color gradually improved significantly.
During the treatment, the skin tissue water absorb laser energy, gasification formed of a plurality of columnar structure small damage region, slight damage zone collagen contraction hyperplasia, and no effect skin tissue can be used as the thermal diffusion region to avoid the side effects of thermal damage, promote the healing of the skin faster at the same time, to achieve skin tightening, skin rejuvenation and improve scars, shrink pores purpose.Fractional laser targeted tissue is water, so treated skin color is not selective, another advantage of fractional laser is the original energy intensive spot dispersed into the tens to hundreds of small focal spot, only for the minimally invasive treatment of skin lesions, does not affect the normal skin tissue, the patient's pain greatly reduced, also reduce the side effects of laser therapy, treatment and maintenance of patients are more precise , safe and more secure.
Technical Specifications:
Wavelength | 10.64um |
Power Output | 1-40W |
Laser Type | UltraPulse; CW; Fractional |
Spot Size | 0.12mm & 1.25mm (adjustable) |
Spot Density | Up to 102400 dot |
Scan Size | Up to 20x20mm |
Scan Shapes | Square; Rectangle; Circle; Triangle; Rhombus; Ellipse; Line |
Beam Patterns | Standard; Random; Scatter |
Aiming Beam | 5mW red diode laser, 635nm, adjustable intensity, blink on/off |
Beam Delivery | Articulated 7-joint arm with up to 360° rotation |
Cooling | Self-contained, closed cycle |
Stand-by Working | Continuously for 18 hours |
Display | 10.4" True Color LCD Touch Screen |
Electrical Requirements | 100-240VAC, 20A max., 50/60Hz |
Net Weight | 52 kgs |
Dimensions (WxDxH) | 52*38*117cm |
