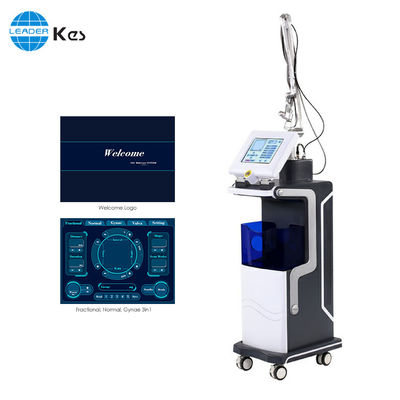

10.64um Air Cooling Co2 Fractional Laser Equipment For Scar Removal

10.64um Air Cooling Co2 Fractional Laser Equipment For Scar Removal
10.64um Air Cooling Co2 Fractional Laser Equipment For Scar Removal

Large Image :  10.64um Air Cooling Co2 Fractional Laser Equipment For Scar Removal

Product Details:
Place of Origin: China
Brand Name: KES
Certification: CE FDA ISO 13485
Model Number: MED-870+
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 2000-6000$ / set
Packaging Details: Aluminum Alloy Box
Delivery Time: after you payment 7 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1000 sets per month
Detailed Product Description
Product Name: 10.64um Non Ablative Fractional Co2 Laser Machine For Skin Key Word: CO2 Fractional Laser
Wavelength: 10.64um Dimension: 52*38*117cm
Cooling System: Air Cooling Pulse Energy: Max 40W
Laser Type: CO2 Laser Style: Stationary
Q-switch: No Warranty: 1 Year Warranty For Co2 Laser Machine
Color: Bule And White
High Light:

air cooling co2 fractional laser equipment

,

10.64um co2 fractional laser equipment

,

10.64um fractional co2 laser machine

Medical CE CO2 Fractional Laser Scar Removal Machine Theory



Co2 Fractional laser system adopts the international advanced microlens technology, which can make the laser system produce a large number of tiny ultra-pulsed beams. These ultra-pulsed beams can form tiny holes with a diameter of 0.12 mm to 1.2 mm and a depth of 2 mm on the skin after acting on the skin tissue.As a result, the skin forms a large number of micro-thermal zones) and heat accumulation area or microscopic heating area, can form on skin pigment group partition of gasification, the accumulation of additional heat in genuine leather, can make skin collagen produce immediate contraction function, and can stimulate collagen hyperplasia for a long time, so as to achieve tender skin and wrinkles, remove scar, solve the skin problems such as abnormal pigment effect.This kind of fractional treatment (fractional), can make the skin wound heal in a short time, through the natural repair of the human body, replacement defect damaged tissue, so as to produce new healthy tissue.


10.64um Air Cooling Co2 Fractional Laser Equipment For Scar Removal 0


Co2 Fractional Laser Equipment Technical Specifications



Wavelength 10.64um
Power Output 1-40W
Laser Type UltraPulse; CW; Fractional
Spot Size 0.12mm & 1.25mm (adjustable)
Spot Density Up to 102400 dot
Scan Size Up to 20x20mm
Scan Shapes Square; Rectangle; Circle; Triangle; Rhombus; Ellipse; Line
Beam Patterns Standard; Random; Scatter
Aiming Beam 5mW red diode laser, 635nm, adjustable intensity, blink on/off
Beam Delivery Articulated 7-joint arm with up to 360° rotation
Cooling Self-contained, closed cycle
Stand-by Working Continuously for 18 hours
Display 10.4" True Color LCD Touch Screen
Electrical Requirements

100-240VAC, 20A max., 50/60Hz





Co2 Fractional Laser Equipment  Treatment

10.64um Air Cooling Co2 Fractional Laser Equipment For Scar Removal 1



Co2 Fractional Laser Equipment Function



1. Laser resurfacing surgery
2. Laser wrinkle removal surgery
3. Laser scar removal surgery
4. Laser blepharoplasty
5.Other applications: Removal of pimented naevus, chloasmas, freckles, age pigments, warts, seborrheic keratosis, syringoma, acnes, milia, striae gravidarum; Pore shrinkage; Skin tightening; Laser hairtransplant; Laser breast augmentation and etc.



10.64um Air Cooling Co2 Fractional Laser Equipment For Scar Removal 2









Co2 Fractional Laser Equipment Advantage :



1. Simple operation, efficient and safe treatment, no need to rest after the operation, does not affect work.
2. It can treat all parts of the body, with good effect, wide disease source and rich income.
3. International new technology, with a large amount of clinical experience accumulated light based cosmetic means.
4. The output high energy of this machine can reach 80MJ, which is higher than similar products.
5. The machine is composed of host and handle. The company keeps the erbium glass laser with original performance but miniaturization, and integrates it into the handle, which not only saves the loss of optical fiber transmission, but also is very easy to maintain.
6. The main components are imported from abroad, and a lot of innovations have been made in the structure, and the technical performance has reached the international advanced level.When changing the lamp, just send the handle back to the manufacturer without changing the main machine.
7. Non-stripping treatment, no pain, short time, no adverse reactions, especially suitable for young and middle-aged people.
8. The machine has three different density microbeam array outputs.They can be easily replaced on the handle.For each point density, a variety of point energy levels are set up to provide tailored treatment for different lesions, so as to achieve satisfactory therapeutic effects.
9. This machine adopts single board control, 10.4 inches full-color large screen display.Equipped with a soft keyboard to enter the patient's case number.




10.64um Air Cooling Co2 Fractional Laser Equipment For Scar Removal 3






10.64um Air Cooling Co2 Fractional Laser Equipment For Scar Removal 4

10.64um Air Cooling Co2 Fractional Laser Equipment For Scar Removal 5










10.64um Air Cooling Co2 Fractional Laser Equipment For Scar Removal 6

About KES:

Beijing KES Biology Technology Co., Ltd. is the professional manufacturer of beauty machine for more than 10 years. Our machines got the ISO 13485, CE, certification etc, all machines past strict test. We have confidence to provide high quality and safe machine that exceed customer satisfaction. Professional R&D team and service team provide hardware design &software OEM&ODM items .
