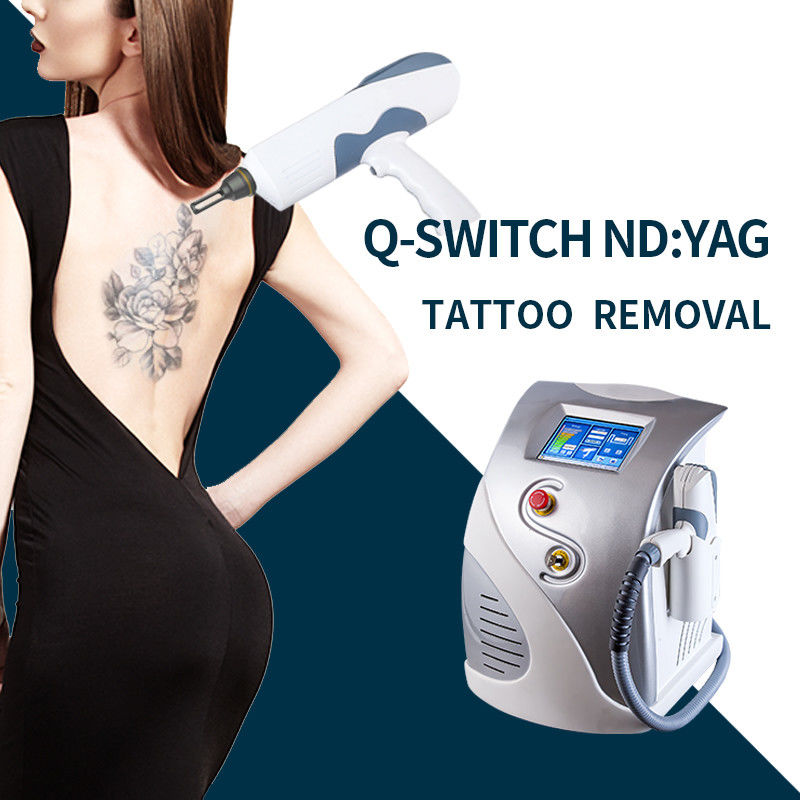

OPT Portable 1064nm 532nm Q Switch Nd Yag Laser Tattoo Removal Machine

China OPT Portable 1064nm 532nm Q Switch Nd Yag Laser Tattoo Removal Machine supplier
OPT Portable 1064nm 532nm Q Switch Nd Yag Laser Tattoo Removal Machine supplier OPT Portable 1064nm 532nm Q Switch Nd Yag Laser Tattoo Removal Machine supplier

Large Image :  OPT Portable 1064nm 532nm Q Switch Nd Yag Laser Tattoo Removal Machine

Product Details:

Place of Origin: China(mainland)
Brand Name: KES
Certification: CE ,ISO 13485
Model Number: MED-810A

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD1000~6000
Packaging Details: Aluminum Alloy Box
Delivery Time: 5-7 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 500sets/Month
Contact Now
Detailed Product Description
Handpiece: 1 Wavelength: 532&1064nm
Laser Type: Q-switched KTP Nd:YAG Spot Size: 2-8mm
YAG Bar Size: 7+8 Certificate: CE
Net Weight: 25kgs Dimensions (WxDxH): 45*40*57cm

New OPT Portable beauty salon professional1064nm 532nm q switch nd yag laser tattoo removal machine

Theory:



ND: YAG Laser Cosmetic System introduces gem-adjusting Q switch, which uses high energy by instant

emission of laser beam to crush and remove the pigment effectively in the pathologically changed tissues.

That is an explosion led by laser beam: the laser beam at the fixed wavelength enabled by the accumulated

high energy can reach the pathologically changed tissues through epidermis in a very short time (only 6 ns)

to instantly crush the respective color base, then the corresponding pigment group gets swollen and

outburst at last due to high energy, and part of the pigment group springs out of the human body (at

shallow epidermis), and the rest (at basis tissues) pigment group will become very small particle before

swallowed by the human cell which will be finally discharged out of the human body through lymphatic

system circulation. The pigment of the pathological tissues will fade in color till it vanishes. And the

surrounding normal tissues will not be ruined since they will not absorb the laser at that fixed wavelength .

OPT Portable 1064nm 532nm Q Switch Nd Yag Laser Tattoo Removal Machine



Applications of ND:YAG Q Switch Laser tattoo removal:

1064nm :birth mark , coffee spot , freckle ,age pigment ,pigment from outside injure, pigment deposit dispelling , black ,blue tattoo ,eye line ,eye brown and lip line, and other parts of body, etc
532nm:red and brown pigment ,red spot and mole ,caplillarectasis and brandy nose
1320nm: skin whitening,Freckle, acne,face blackhead/black spot removal



advantages:

1.Bipolar ND:YAG laser.Available with 800mj by single pulse energy.It is the unique high-tech laser with Max energy of 1600mj

2.The erminator of Tattoos: No pain,no burn and even no aneasthesia!

3. Laser lamp:imported from America with more than 500,000 pulses!

4.German designers conducted industrial and inner structure designing ,while with ABS aviation material, so as to achieve anti-interference, Antistatic corrosion resistance ,and flame-resisting

5.“plug and play” connectors: Easy for installation and service

6.Super cooling system: it can keep the device working continuously in good condition.

7.16 local languages are available

OPT Portable 1064nm 532nm Q Switch Nd Yag Laser Tattoo Removal Machine

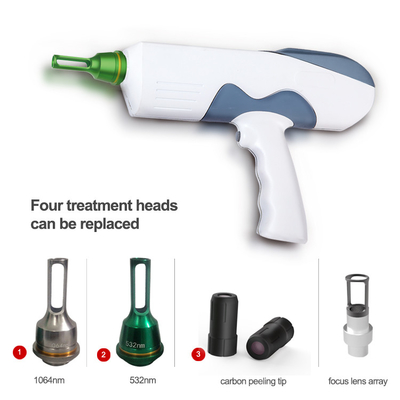

Handpieces:

1.Professional & Human engineering design

2.Shot Counter: convenient for use

3.Bipolar Nd:YAG laser: Available with 800mj by single pulse energy .it’s the unique high-tech laser with Max energy of 1600mJ

4.1+2 system: 1 Xeon lamp and 2 Yag Bars(imported), Unique handle design

Two tips:532nm&1064nm for different color tattoo removal.



OPT Portable 1064nm 532nm Q Switch Nd Yag Laser Tattoo Removal Machine





Technical Specifications:

Wavelength 1064nm&532nm
Spot Diameter 2~5mm
Width of Pulse <10ns
Pulse Energy 532/1064nm (0~800mJ)
Repetition Rate 1-6Hz adjustable
Operation Interface 6 dual color LCD
Power 500W
YAG Bar Size 7
Aiming Beam Guided by red light
Cooling Systems Air Cooling & Close Water Circulation
Electrical Requirements 100/110V,50~60HZ OR 230~260V, 50~60HZ
Dimension 50cm*38cm*40cm(L*W*H)
Net Weight 12kgs




OPT Portable 1064nm 532nm Q Switch Nd Yag Laser Tattoo Removal Machine



Services:

1.Warranty

12 month for host machine, Lifelong Maintenance Service

2. Once the machine have any malfunction during the operation, how to do?

Please rest assure if you met such problem, because KES has a professional after-sale service team which can reach you immediately and solve the machine’s problem within 1-3 days.

For details, please contact with us freely

3.If the machines broken during the shipment, how to do?

Generally there will be transportation insurance in the shipment, once there is any damage during the transportation, KES will help you to solve the claims with the insurance companies to collect your money back in time.
