Product Details:
Payment & Shipping Terms:
|
| Wavelength:: | 650nm-950nm,430nm-1200nm,640-1200nm | Handpiece: | 3 |
|---|---|---|---|
| Technology:: | IPL+SHR+E-light | Brand: | KES |
| Type: | MED - 140C+ | Cetification: | Medical CE, CE Certificate, ISO13485, SGS, FDA Pending |
| High Light: | SHR super hair removal,ultrasonic cavitation slimming machine |
||

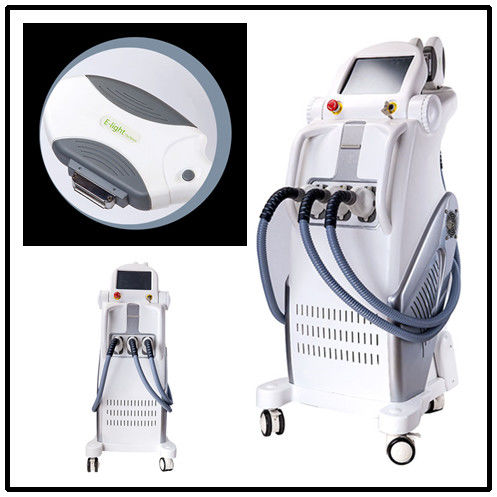

2016 Permanent IPL SHR Hair Removal with 3 Handles/ 650-950nm Fast Hair Removal
Working Principle:
SHR=Super Hair Removal,it’s a revolutionary technology of hair removal which is having a sweeping success. (adopt technology AFT,EDF)
SHR combines laser technology and the benefits of the pulsating light method achieving practically painless results.
SHR combined with “In Motion” represents a breakthrough in permanent hair removal with light technology. The treatment is more pleasant than with the conventional systems and your skin is better protected.
Schematic diagram:
Advantages:
1. Permanent hair removal by E-light technology
2, All kinds of spots removal, freckle removal, pigment removal
3. Skin lifting, skin tightening, skin rejuvenation, skin whitening, wrinkle
removal, reshape facial outlines, contract large pores, rebuild body figure
4. Acne treatment, Angiotelectas treatment
Difference Of IPL SHR & Traditional IPL or laser:
Traditional laser or IPL technologies employ short impulses of approximately 2-300 milliseconds, applying a vast amount of energy (12-120 J/cm2). Energy is transported to the hair root through melanin, where warmth of 65-72° Celsius is produced. Energy reaches the root of the hair follicle solely through melanin. Skin and red blood cells have a similar absorption coefficient as melanin and therefore also absorb the high levels of energy produced by the laser and IPL methods.
SHR technology, on the other hand, utilizes the melanin path only partially (50%)., and combining In-Motion technology, gently warms the skin helping penetrate down to the follicles which produce hair growth.
Research has shown that a slower, but longer heating process is considerably more effective for permanent hair removal than high and short levels of energy. Therefore, when using SHR, the device is passed over the tissue multiple times (in motion) using low energy but a high rate of repetition (up to 10Hz, i.e. 10 times per second) instead of using the traditional method with single, high-energy impulses. Thus, the hair melanin, as well as the tissue of the stem cells, is heated with low energy at a slow pace and over a longer period of time to a comfortable temperature of 45° Celsius.
Comparison:
| Parameter | Normal IPL | MED-120C | Advantages |
| Pulse |
Multi pulse mode |
Single pulse | Single pulse mode can emit energy averagely, but multi-pulse mode focus energy on first pulse, very easy to burn skin |
| Wavelength | HR: 640-1200nm | HR:650-950nm | Moving IPL filtered violet light and infrared light, which will eradiate and absorb water from target skin. So moving IPL does not have any side-effect to body. |
| DEC Technology | Unavailable | Available | Make sure energy output accurate and same with the display all the time, which makes operation easy and safe. |
|
Particle filter |
Unavailable | Available | Prolong lifespan of handpiece and machine! |
| Frequency | 0.2-1Hz | 1-10Hz | Speed up the treatment, save time |
| Work technology | Stationary technology | Stationary technology & In-motion technology | Moving IPL can use less time to do treatment on back, leg and arm. |
| Power supply | 1200W | 2400W | Make fast charging and achieve fast shooting |
| Timer | no | 30s | Accurate control the time and convenient for operator |
| Spot size | 10*40mm | 15*50mm | Biger size increase the efficiency |
| Operation Interface | 7.4” interface | 8.4” intelligent interface | More easy for operator |
Technical Specifications:
| Wavelength (Spectrum) |
650-950nm(HR) |
| Energy Density (Fluence) |
1-26J/cm2(SHR) |
| Spot Size |
15x50mm2 (HR); |
| Pulse duration | 1-15ms |
| Pulse | Single |
| Pulse Repetition Rate | 1-10Hz |
| Timer | 1-30s |
| IPL Peak Power | 2500W |
| Cooling | Continuous Crystal contact cooling (-4°C-2°C ) + Air cooling + Closed water circulation cooling |
| Stand-by Working | Continuously for 18 hours |
| Display | 10.4" True Color LCD Touch Screen |
| Electrical Requirements | 100-240VAC, 20A max., 50/60Hz |
| Net Weight | 60 kgs |
| Dimensions (WxDxH) | 63*53*126cm |
