40 Watt High Frequency Co2 Vertical Fractional Laser with 660nm for Skin Rejuvenation

Certifications
Good Quality E-light IPL RF on sale Good Quality IPL Beauty Equipment on sale
The design of KES machine are the most attractive I met, after I purchase, I find the quality is reliable, and thanks for the excellent service of KES

—— Anna, UK

I bought the machine for my wife, and the moment she got it, she loves it very much.

—— Ahmad Arnous, UAE

la máquina es buena de KES yi el servicio es bueno

—— Paco, España

I'm Online Chat Now

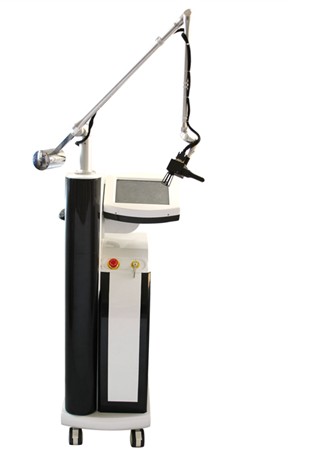

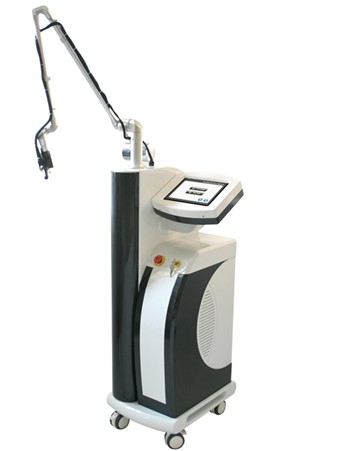

40 Watt High Frequency Co2 Vertical Fractional Laser with 660nm for Skin Rejuvenation

Large Image : 40 Watt High Frequency Co2 Vertical Fractional Laser with 660nm for Skin Rejuvenation

Product Details:

Place of Origin:China
Brand Name:KES
Certification:Medical CE, CE Certificate, ISO13485, SGS, FDA Pending
Model Number:MED-850

Payment & Shipping Terms:

Minimum Order Quantity:3 units
Price:USD1~
Packaging Details:Aluminium Packing Box
Delivery Time:7 working days
Payment Terms:T/T, Western Union
Supply Ability:800 units per month
Detailed Product Description

40 Watt High Frequency Co2 Vertical Fractional Laser with 660nm for Skin Rejuvenation



40 Watt High Frequency Co2 Vertical Fractional Laser with 660nm for Skin Rejuvenation 40 Watt High Frequency Co2 Vertical Fractional Laser with 660nm for Skin Rejuvenation







The angle of radiation of CO2 laser is very small and its energy density is high. Output power density will reach several kilowatts per square cm. CO2 laser surgical system outputs infrared rays whose wavelength is 10600nm. Its penetrability is comparatively large. Because it can incise tissue accurately after focusing, CO2 laser surgical system is also considered as laser scalpel. If beam of laser is enlarged, it is good for the heating-up physical therapy of the deepest tissue.
During the procedure, only a tiny proportion of the skin receives the laser light. The laser delivers a series of microscopic, closely spaced laser spots to the skin white simultaneously preserving the normal healthy skin. The undamaged skin becomes a reservoir of tissue for fast heating and regeneration of the treated area by producing and providing new dermal collagen and eliminating epidermal pigmentation and irregularities to the skin tone.



1. How it works?
The angle of radiation of CO2 laser is very small and its energy density is high. Output power density will reach several kilowatts per square cm. CO2 laser surgical system outputs infrared rays whose wavelength is 10600nm. Its penetrability is comparatively large. Because it can incise tissue accurately after focusing, CO2 laser surgical system is also considered as laser scalpel. If beam of laser is enlarged, it is good for the heating-up physical therapy of the deepest tissue.
During the procedure, only a tiny proportion of the skin receives the laser light. The laser delivers a series of microscopic, closely spaced laser spots to the skin white simultaneously preserving the normal healthy skin. The undamaged skin becomes a reservoir of tissue for fast heating and regeneration of the treated area by producing and providing new dermal collagen and eliminating epidermal pigmentation and irregularities to the skin tone.

2. Application
1) Eliminating Acne scars and the scars by traumatism or operation2) Actenic keratoses3) Basal cell carcinoma4) Burn debridement5) Laser skin resurfacing and rejuvenation6) Improving texture tone and pore size7) Erasing unwanted brown spots8) Smoothening wrinkles around the eyes and mouth


3.Features

1) 10.4" touch screen interface means ultimate ease of use
2) Module design, they are well assembled in the metal frame shell , safe for transportation and easy operation
3) The optical scanner has 360 degree scanning ability, more suitable for treatment. Infrared indicator insures the precise treatment. Humanized design, easy to operate
4) It has 7-Articulation Joint Light Guiding Arm, which makes the operation much easier.
5) Pre-loaded treatment parameters so you can begin treating patients immediately. 5 files for storage patients treatment data
6) 7 scanning graphics are available
7) Medical CE&ISO13485 approved
8) Both water and wind cooling systems make machine working stable.
9) Alert alarm for low water level, water temp, water flux and refrigeration

4.Technical Specifications

Wavelength

10.6μm±0.1μm

Power

1~40W

Starting Voltage

≤25kV

Operating Voltage

≤15kV

Operating Current

≤25mA

Focal Flare Diameter

≤0.2mm

Indication Beam

Red semiconductor laser (660nm,  ≤5mW)

Transmission System

7-Articulation Joint Spring-Balanced Light Guiding Arm

System Control

Microcomputer control,  soft version 4.0

Operating Mode:

Ultra Pulse and Factional

Scan scanning area

Max 20*20mm

scanning graphic

Rectangular, Ellipse, circle, Rect, straight line, hexagon, triangle

scanning speed

10m/s

Continuous

1~40W,  Step Adjustable per 1W

Pulse Interval Time

0~999ms,  Step Adjustable per 1ms

Modulation  Frequency

Frequency 0~999Hz,  Step Adjustable per 1Hz

Cooling System

Built-in circulating water cooling

Power Supply

AC 220V±22V; 50Hz±1Hz

Net Weight

60kg



 5.Before & After Photos

40 Watt High Frequency Co2 Vertical Fractional Laser with 660nm for Skin Rejuvenation

40 Watt High Frequency Co2 Vertical Fractional Laser with 660nm for Skin Rejuvenation
